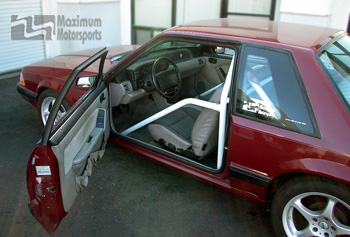

1990 coupe with MMRB-1 roll bar, showing the door bar located next to the armrest. Click for larger image.
1990 coupe with MMRB-1 roll bar. Standard door bar. Click for larger image.
1990 coupe with MMRB-1 roll bar, showing location of door bar. Click for larger image.
1990 coupe with MMRB-1 roll bar, showing the location of the rear brace. The rear plastic panel is not visibly trimmed. Click for larger image.

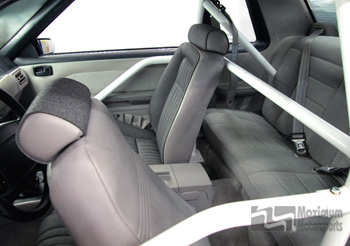

1990 coupe with MMRB-1 roll bar, showing fixed harness mount tube and placement of rear braces. The passenger seat is adjusted all the way back on the seat track, and the backrest is adjusted rearward, until it contacts the harness mount tube. Click for larger image.
1990 coupe with MMRB-1.4, showing door open, with door bar fully open. Click for larger image.
1990 coupe with MMRB-1.4, showing position of the removable swing-out door bar. Click for larger image.
